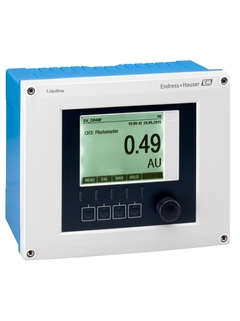

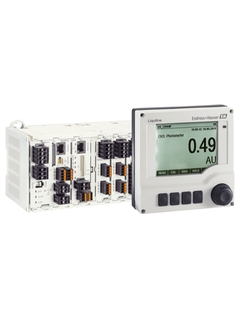

Liquiline CM44P
Transmisor multicanal
Memosens convierte el valor medido en una señal digital y lo transfiere al transmisor sin conexión de contacto. Este vídeo muestra cómo Memosens optimiza el control y mantenimiento de procesos.

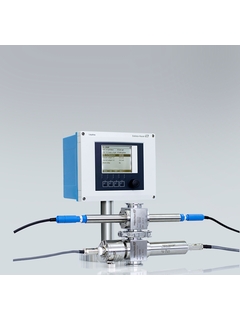

Equipo multiparamétrico para fotómetros de proceso y sensores Memosens
El Liquiline CM44P es el primer transmisor que le brinda la oportunidad de combinar fotómetros de proceso y sensores Memosens. Esto facilita la configuración de los puntos de medición completos para procesos de monitorización como cromatografía, fermentación, separación de fases y filtración. El transmisor le ahorra tiempo y dinero porque le ofrece integración directa en el sistema, fácil utilización y una menor necesidad de piezas de repuesto en stock. Liquiline CM44P le brinda todos los beneficios de la plataforma Liquiline a los fotómetros de proceso.
Selección rápida
Configuración individual
Componentes adicionales
-
Ventajas
Diseño inteligente: Un controlador para todos los parámetros, incluidos los fotómetros de proceso
Ahorro en la cómoda instalación de los puntos de medición: Combine hasta dos fotómetros de proceso y cuatro sensores Memosens para un encaje perfecto con su...
-
Ámbito de aplicación
El Liquiline CM44P es especialmente apto para aplicaciones de las siguientes industrias:
Ciencias de la vida
Alimentación y Bebidas
Industria química
Oil & Gas
El Liquiline CM44P dispone de todos los protocolos de comunicación e interfases habituales, como:
0...
Documentos / Manuales / Software
-
Liquiline CM44P
Información técnica
Controlador universal multicanal a cuatro hilos para fotómetros de
proceso y sensores MemosensTechnical Information (TI) -
Memosens
Manual de instrucciones
Entradas de sensor con protocolo Memosens
Manual de instrucciones (BA) -
Liquiline CM44P
Manual de instrucciones
Controlador universal multicanal a cuatro hilos para fotómetros de
proceso y sensores MemosensManual de instrucciones (BA) -
Liquiline CM44P
Controlador universal multicanal a cuatro hilos para fotómetros de
proceso y sensores MemosensShort Instruction (KA)11/19Inglés -
Special Documentation Liquiline 4-wire Platform
Modbus Guideline
Special Documentation (SD) -
Special Documentation Liquiline 4-wire Platform
EtherNet/IP guideline
Special Documentation (SD) -
CM44x/R/P / CSFxx / CA80xx
PROFIBUS Guideline
Special Documentation (SD) -
Kit Freischaltcodes
Kit activation codes
Für erweiterte Funktionalität
For extended functionality
Special Documentation
Für erweiterte Funktionalität/For extended functionality
Special Documentation (SD) -
Heartbeat Technology in the chemical industry
Liquiline CM44 transmitters for liquid analysis
Publications (PU)03/18Inglés -
Heartbeat Technology in der Chemieindustrie
Liquiline CM44 Messumformer für die Flüssigkeitsanalyse
Publications (PU)03/18Alemán -
OUSBT66 spart Zeit und erhöht die Prozesssicherheit
OUSBT66 spart Zeit und erhöht die Prozesssicherheit
Industry Solutions (SO)07/17Alemán -
Save time and make your cell growth process safer with OUSBT66
Save time and make your cell growth process safer with OUSBT66
Industry Solutions (SO)07/17Inglés -
Expertise in liquid analysis
From sensors to complete turnkey solutions
Fields of Activities (FA)03/19Inglés -
Kompetenz in der Flüssigkeitsanalyse
Vom Sensor bis zur schlüsselfertigen Komplettlösung
Fields of Activities (FA)03/19Alemán -
Fotometri da processo
Esperti nell'analisi dei liquidi
Competence Brochure (CP)09/16Italiano -
Prozessphotometer
Kompetenz in der Flüssigkeitsanalyse
Competence Brochure (CP)09/16Alemán -
Photomètres de process
Expertise en analyses physico-chimiques
Competence Brochure (CP)09/16fr -
Process photometers
Expertise in liquid analysis
Competence Brochure (CP)09/16Inglés -
Process monitoring made easy with Liquiline CM44P
Transmitter for Memosens sensors and process photometers
Innovations (IN)04/16Inglés -
Prozessüberwachung leicht gemacht mit Liquiline CM44P
Messumformer für Memosens-Sensoren und Prozessphotometer
Innovations (IN)04/16Alemán -
Process monitoring made easy with Liquiline CM44P
Transmitter for Memosens sensors and process photometers
Innovations (IN)04/16Inglés -
Firmware for Liquiline platform - version 1.06.08
Firmware for Liquiline CM44(R), Liquiline CM44P(R), Liquistation CSF34,
Liquistation CSF48, Liquiport CSP44, Liquiline System CA80Configuration SoftwareLanguage neutral -
GSD Single, GSD_EH_DP_AN_LiquilineCM44x_0x155D_0x04_0x01, 22.04.2016 (Analysis, Liquiline)
PROFIBUS DP,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.04.00Language neutral -
EDS Single, EDS_EH_EIP_AN_Liquiline_0x109C_0x02_0x01, 23.10.2015 (Analysis, Liquiline)
EtherNet/IP,
EtherNet IP System Version: AnyElectronic Data Sheet (EDS)2.1Language neutral -
EDD Single, AMS10_HART_AN_Liquiline_0x119C_0x01_0x01, 24.10.2019 (Analysis, Liquiline, 0x119C)
HART,
AMS Version: 10.5, 11.0, 11.1, 11.5, 12.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_HART_AN_Liquiline_0x119C_0x01_0x01, 24.10.2019 (Analysis, Liquiline, 0x119C)
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1, 13.5, 14.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_DP_AN_Liquiline_0x155D_0x04_0x01, 05.08.2016 (Analysis, Liquiline, 0x155D)
PROFIBUS DP,
PDM Version: 6.1, 8.2Electronic Data Description (EDD)1.00.00Language neutral -
DTM Single, Liquiline_CM44x_DP_FW_01_06_zz_Dev_Rev_4, 08.07.2019 (Analysis, Liquiline, 0x155D)
PROFIBUS DP,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00
PACTware Version: 4.1Device Type Manager (DTM)1.7.0.0Language neutral -
DTM Single, Liquiline_CM44x_CDI_FW_1_06_zz_Dev_Rev_01, 12.07.2019 (Analysis, Liquiline, 0x119C)
Common Device Interface,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.0.14.0Language neutral -
AOP Single, RS_EIP_AN_Liquiline_CM44x_0x109C_0x02_0x01_AOP, 27.06.2018 (Analysis, Liquiline)
EtherNet/IP,
RA RSLogix 5000 Version: V15 and laterAdd On Profile (AOP)1.22Language neutral -
Faceplate Library, PRM_HART_Package_Analysis_1_08_00, 07.10.2015 (Analysis)
HART,
Plant Resource Manager Version: R3.05, R3.11, R3.12Placa frontal1.08.00Language neutral -
ComDTM Single, CDI_CommDTM, 21.01.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Comunicación DTM2.09.06Language neutral -
Liquiline
Código de producto: CM44P-
Número Declaración: EC_00244_02.16EU DeclarationAlemán , Inglés , fr -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Código de producto: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Número de certificado: EAEC RU D-DE.AD07.B.01362/19MiscellaneousRuso -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Código de producto: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Región: Russia (Declaration of Conformity)
Número de certificado: EAEC D-DE.AD07.B.01363/19MiscellaneousRuso -
Liquiline, TURBIDITY AND TOTAL SUSPENDED SOLIDS, Turbimax
Código de producto: CM44P-, CUS51D-, CUS52D-, OUSTF10-
Región: China
Número de certificado: PAC 2016-C344MetrologyChino -
Liquiline, Liquiline M, Memosens
Código de producto: CCS120D-, CCS50D-, CCS51D-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-
Región: Canada, USA
Entidad certificadora: CSAOrdinary Location Product SafetyInglés
