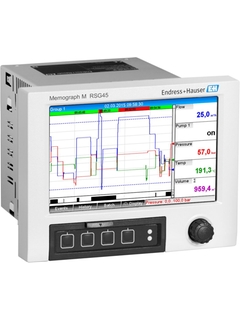

Memograph M RSG45
Guarda, visualiza, analiza y comunica
El gestor de datos avanzado es un sistema flexible y de gran potencia para organizar valores de proceso. Gracias a su funcionamiento intuitivo, Memograph M se adapta rápida y fácilmente a cualquier aplicación. Los valores de proceso medidos se presentan claramente en la pantalla y se registran de un modo seguro, se monitorizan y analizan los límites. Mediante unos protocolos de comunicación comunes, se pueden comunicar fácilmente los valores medidos y calculados a los sistemas de nivel superior y se pueden interconectar los módulos individuales de la planta. También disponible como versión de riel DIN sin pantalla.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Tipo de señal de entrada
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs) -
Salida
12 relés (máx.)
2 análogo (máximo) (I, pulso)
1 fuente de alimentación del transmisor -
Pantalla
TFT 7" colour graphic display

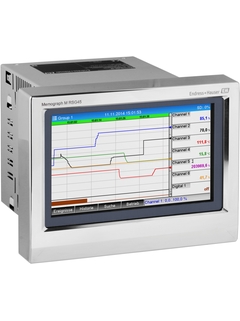

TFT 7" colour graphic display with touch panel -
Almacenamiento / Grabación
Memoria interna
tarjeta SD
unidad flash USB -
Calculations
Mass/heat quantity
heat quantity difference
-
Selección rápida
Configuración individual
-
Ventajas
Un alto grado de seguridad de los datos: almacenamiento de datos protegido contra manipulaciones y autorización de acceso personalizada con firma electrónica (FDA 21 CFR 11)
Tarjeta de entrada HART: los sensores HART conectados directamente proporcionan...
-
Ámbito de aplicación
La solución para todas sus tareas. Por ejemplo, para:
Tecnología de medición de procesos
Estaciones de alimentación y suministro energético
Monitorización/cálculo de la eficiencia de la caldera de vapor
Sectores industriales alimentario y farmacéutico
...
