Transmisor pH/redox

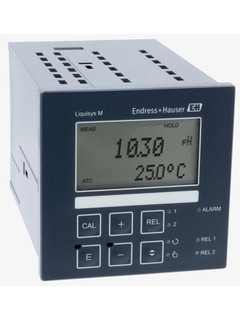

Liquisys CPM223
Dispositivo compacto para montaje en panel destinado a todas las industrias
El Liquisys CPM223 es un transmisor de pH/redox estándar para todos los sensores analógicos y digitales Memosens Mejora su seguridad en operación gracias a las comprobaciones continuas de verosimilitud del proceso y del sensor.Seleccione de entre los numerosos módulos de hardware y software, como relés o comunicación de bus de campo, para adaptarlo exactamente a sus aplicaciones de medición. Esta modularidad también le permite actualizar el transmisor en cualquier momento. Un menú sencillo y la calibración a dos puntos permiten una configuración y un funcionamiento fáciles y rápidos.
Componentes adicionales
-
Ventajas
Mayor seguridad en operación: sistema de comprobación continua, configuración programable de la alarma, interfaz Memosens contrastada para una conexión con el sensor fiable.
Automonitorización fiable: Sistema de comprobación de sensores para electrodos...
-
Ámbito de aplicación
El transmisor Liquisys CPM223 es apto para todo tipo de sensores de pH/potencial redox de vidrio e ISFET en zonas sin peligro de explosión, por ejemplo, en las industrias siguientes y sus servicios auxiliares:
Industria química
Alimentación y Bebidas
...
