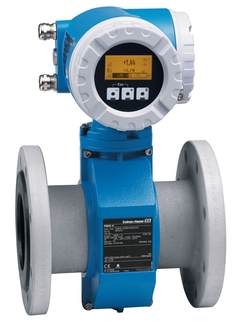

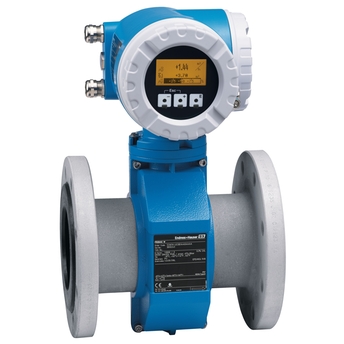

Promag 53W

Este producto ya no se encuentra disponible.

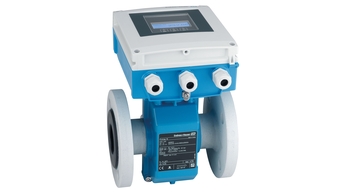

Consulte la nueva generación en la sección predecesor / sucesor o contacte con su entidad local de Endress+Hauser.

Características y especificaciones

Atrás

Details

Measuring principle

Electromagnético
Encabezado del producto

EL sensor con grado de protección IP68 (Caja tipo 6P) combinado con un transmisor con integración de sistema flexible. El especialista en agua y la industria de aguas residuales para las aplicaciones de mayor demanda.
Características del sensor

Operación segura, confiable a largo plazo - sensor robusto y completamente soldado.
Medición de flujo ahorrador de energía - sin pérdida de presión debido a constricciones transversales.
Libre de mantenimiento - sin partes movibles. Aprobaciones de agua para beber internacionales. Grado de protección IP68 (Gabinete tipo 6P)
Características del transmisor

Calidad – software para el llenado & dosificación, densidad, limpieza de electrodo y también diagnósticos avanzados. Cálculo fácil – totalizadores bidireccionales. Recuperación automática de datos para servicio. pantalla de 4 líneas retro iluminado con control táctil. Dispositivo en versión compacta o remota.
Rango de diámetro nominal

DN 25...2000
1"...78"
Máx. error medido

±0.2%
Rango de medición

0...110'000 m3/h
Máx. presión de proceso

PN6...40
Cl 150...300
JIS 10...20K
AWWA Clase D
AS 2129 Tabla E
AS 4087 PN16
Rango de temperatura del medio

-20...+80°C
(-4...+176°F)
Rango de temperatura ambiente

-20...+60°C
-40...+60°C (opcional)
Grado de protección

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Pantalla/Operación

Pantalla de cuatro líneas retro iluminada
Control táctil
Salidas

4...20 mA
Pulso/Frecuencia (activo/pasivo)
Relevadores
Estatus
Entradas

Estatus
Entrada actual
Comunicación digital

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Aprobaciones para áreas peligrosas

ATEX
FM
CSA
Seguridad del producto

CE, C-tick, EAC marking

Mostrar más
