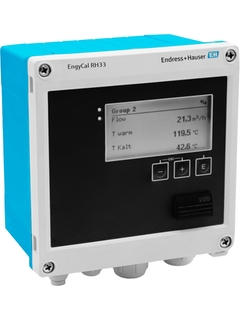

EngyCal RH33
Medidor energético térmico
Medidor de BTU para Custody Transfer (facturación) para registrar las cantidades de calor en el agua
El medidor de BTU RH33 se usa en aplicaciones con medios portadores de energía líquidos.
Calcula la energía térmica que transporta el agua según EN1434, agua glicolada u otros fluidos como aceites térmicos. El ajuste de los sensores de temperatura usando sensores de temperatura calibrados se hace en el equipo.
El software disponible como accesorio permite mostrar ahorros de dinero potenciales.
El equipo dispone de un certificado de Custody Transfer (facturación) y permite efectuar mediciones bidireccionales, por ejemplo, carga/descarga de un acumulador de calor.
-
Ventajas
El consumo energético transparente le ayuda ahorrar en costes energéticos
Los sensores de temperatura calibrados, electrónicamente emparejados, aseguran la máxima exactitud de medición y permiten la sustitución de los sensores de temperatura individuales...
-
Ámbito de aplicación
Registro y facturación de las cantidades de calor y frío en:
Circuitos de calefacción
Circuitos de refrigeración
Circuitos de calefacción y refrigeración combinados
Ámbitos de aplicación típicos en la industria, redes de transmisión de calor de larga...
